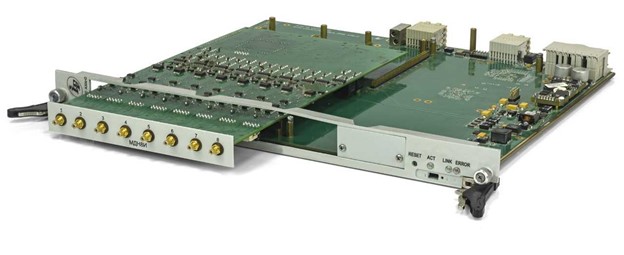

The AXIe-0 NMNS module is a mezzanine module carrier made in the AXIe-0 standard. The NMNS module is intended for use in multichannel systems for collecting / issuing information of digital and analog form. The NMNS performs package buffering of data from different mezzanines with data binding to a single time grid and provides access to the current measurement results on any channel. |
InformTest Mezzanine Carrier NMNS AXIe-0 |

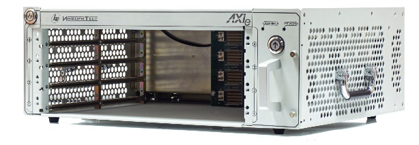

A CH-04 AXIe-0 provides 3 instrument modules slots and supplies 300 Watts to each slot. |
Inform Test 4-SLOT CHASSIS IN AXIE-0 FORMAT |

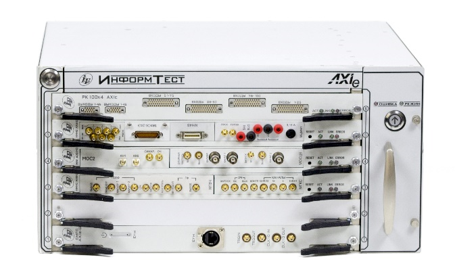

A CH-06 AXIe-0 provides 5 instrument modules slots and supplies 300 Watts to each slot. |
Inform Test 6-SLOT CHASSIS IN AXIE-0 FORMAT |

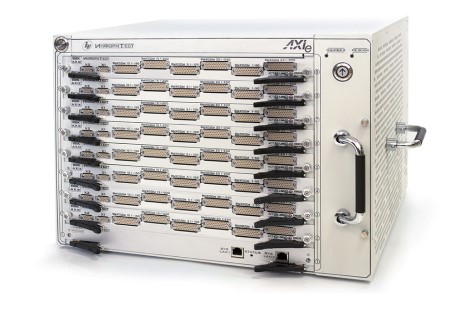

A CH-09 AXIe-0 provides 8 instrument modules slots and supplies 300 Watts to each slot. |
Inform 9 SLOT AXIE MAINFRAME |

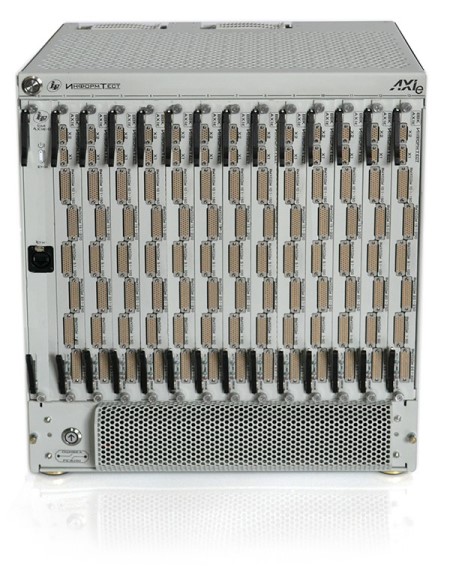

A CH-14 AXIe-0 provides 13 instrument modules slots and supplies 300 Watts to each slot. |
Inform 14-SLOT CHASSIS IN AXIE-0 FORMAT |

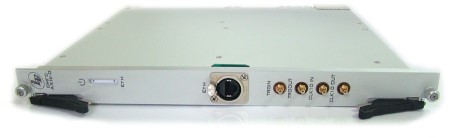

A system module "SMGS AXIe-0" is a 14-port unmanaged Ethernet switch that supports 10/100/1000 Base-T standards. The "SMGS AXIe-0" has 1 port for connection with external controller (PC) and 13 ports for instruments control. |
Inform SMGS AXIE-0 |

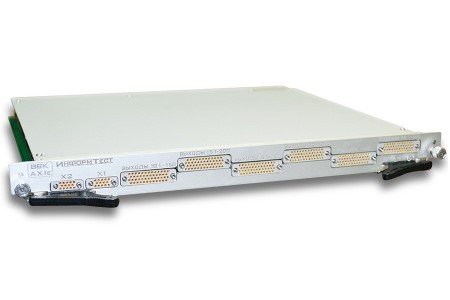

A matrix switch module "VVK AXIe" (300x2) provides 300 output lines for connection to UUT. Dielectric strength between the lines is 2120 VDC and 1500 VAC. |
Inform VVK AXIE |

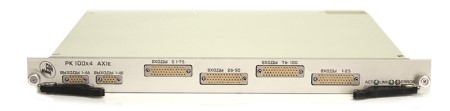

A matrix switch module "RK100x4" has a matrix structure of 100x4, maximum current up to 5A, maximum power up to 100 Watts. The "RK100X4" is AXIe-1 compatible. |
Inform MATRIX SWITCHER RK100X4 AXIE |

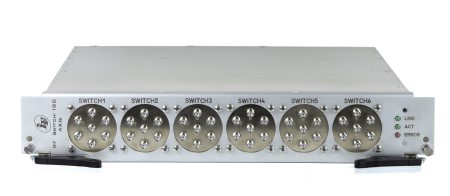

An AXIe module "RF SWITCH-18G" is a switch of RF signals (6 SP6T groups) that works in a frequency range from 0 to 18 GHz. The "RF SWITCH-18G" is AXIe-1 compatible. |
Inform RF SWITCH-18G AXIE |

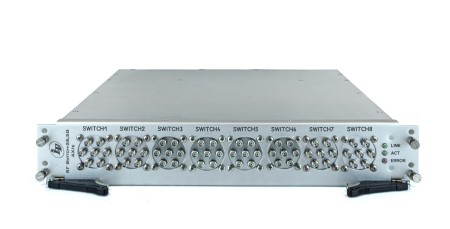

An AXIe module "RF SWITCH-26.5G" is a switch of RF signals (8 SP6T groups) that works in a frequency range from 0 to 26.5 GHz. The "RF SWITCH-26.5G" is AXIe-1 compatible. |
Inform RF SWITCH-26.5G AXIE Copyright ©
