The M8132A is a powerful digital signal processing module featuring customer accessible FPGAs, four optical data interfaces (ODI) running at up to 160 Gb/s input and output each. The module provides a trigger input and output, synchronization input and outputs as well as a 10-general purpose I/O pins. The M8132A is part of Keysight's Wideband Streaming and Signal Processing Products.
The M8121A offers a unique combination of outstanding signal performance, wide bandwidth and unlimited playback time. Through an optical data interface, running at up to 160 Gb/s, the M8121A can receive real or complex samples from compatible storage device, DSP module, digitizer or custom hardware. A digital up-conversion engine is built into the M8121A core ASIC.
The M8131A offers a unique combination of up to 12.5 GHz bandwidth, excellent signal fidelity and gapless capture for an unlimited amount of time. The M8131A can stream raw digitized samples or digitally down-converted I/Q samples over the optical data interface (ODI) at a rate of up to 160 Gb/s. Frequency and phase response is equalized in real-time inside the M8131A's FPGA.

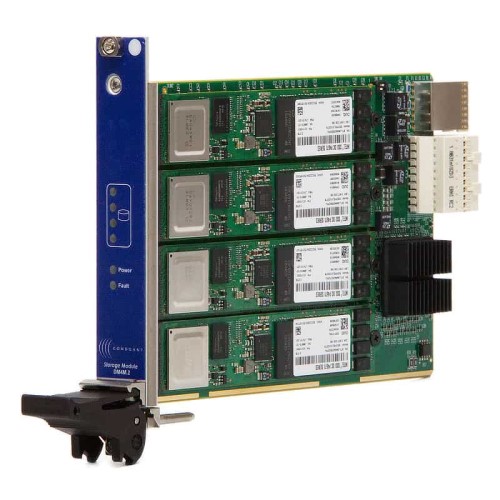

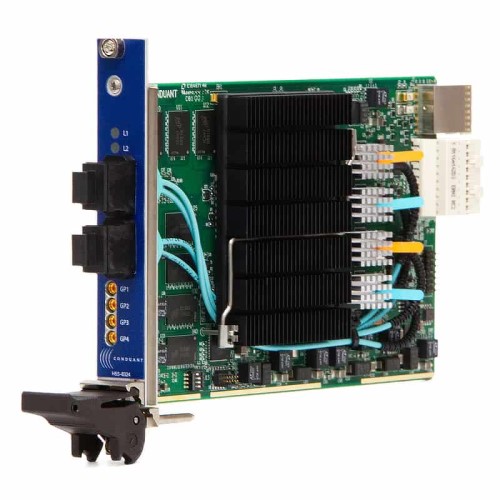

Conduant pioneered peer-to-peer hardware-interlocked data transfers in PCI-based architectures between acquisition and/or playback devices and storage for deterministic, dropout-free recording and playback. FPGA-based, StreamStor products can be modified for function and can support various physical and protocol interfaces Interlaken, Aurora, ODI, SRIO, SFPDP.
TECHWAY designs high-end COTS electronics solutions for acquisition and pre-processing in real-time. We offer an unique solution to implement ODI link. This solution is based on SAMTEC FireFlyTM with 12 full duplex optical links @ 14 Gbps and Kintex UltraScale+ FPGA PCIe Gen3 x16 board. We deliver a complete development kit to easy-develop your ODI application thanks to PCIe IP, memory controller, Windows/Linux drivers and more. Our "ODI-ready" bundle helps our customers to reduce risk, cost and time to market. Our solutions are field-proven by OEM in several industries as Test, Measurement, Instrumentation, GNSS, Electronic Warfare, ...
